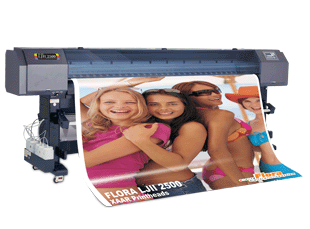

[ Flora LightJet-1800 / LightJet-2500 / LightJet-3200 ]
[Xaar 126 printheads]



Χρηματοδοτήσεις

DATAWORKS
Computers





BENEFITS


Available in four and six colors models with image quality that satisfy the most demanding customer requirement

Designed and built for reliable operation

Encapsulated printing for environmental friendly operation

Automatic media feeding and take-up system for higher productivity

Automatic ink loading and flushing system

PhotoPRINT 4 - Flora edition RIP provides user friendly interface

Supports PostScript III and ICC profiles
TECHNICAL DATA
GENERAL SPECIFICATIONS
Printing Methods Drop-on-demand Piezo electric
Ink Reservoirs Refillable on the fly while printing / 2000 ml per color
Ink Characteristics Solvent-base pigments
Printhead Controls Printhead temperature and voltage are software adjustable
Media Feeding System Free spin/ motor-driven lazy loop for optimal banner tension
Media Take-up system Automatic motor-driven spool 60mt(200') capacity
Media Handling options Roll to roll/ roll to sheets/ loose sheets
Rigid Media Handling Rigid media on sheets (after proper head height adjustment)
Drying System Digitally controlled heater and front-mounted fans
Media Cutter Manual cutting track
RIP Software Photoprint4 Flora Edition (Windows 2000)
Color Management ICC Based color, adjustment curves, density adjustment
File Formats TIFF, JPEG, Postscipt3, EPS, PDF, others
Electrical Requirements 50Hz/60Hz, 220V(±10%)>20A
EnvironmentalRequirements Ambient Temperature 20oC-30oC Relative Humidity 40-70%
Warranty 1 year (please consult your local dealer for detail)
TECHNICAL SPECIFICATIONS
Model LJII 1800 LJII 2500 LJII 3200
Printing Heads XAAR 126
No. of Printheads 8
Color 4 (CMYK)
Resolution Options 180/360 dpi
PRINTING SPEED
Standard Quality 180x180 dpi 45 sm/hr
High Quality 360x360 dpi 28 sm/hr
Ultra Quality 360x720 dpi 15 sm/hr
MEDIA CHARACTERISTICS
Maximum media width 1.85 m 2.55 m 3.25 m
Maximum printing width 1.80 m 2.50 m 3.20 m
Maximum roll dimensions 30 cm (11.8") diameter ( approx 100m/330' length)
Media Types Paper, advertising banner, PVC, mesh fabrics, adhesive vinyl and footcloth, etc
Outdoor durability 2 years (with Flora Solvent Ink)
PHYSICAL CHARACTERISTICS
Dimensions (LxWxH) (m) 2.92 x 0.70 x 1.31 3.64 x 0.92 x1.31 4.32 x0.70x1.31
Weight (Net) 280.00kg 300.00kg 350.00kg


<< DOWNLOAD BROCHURE>> (1,32 Mb)
