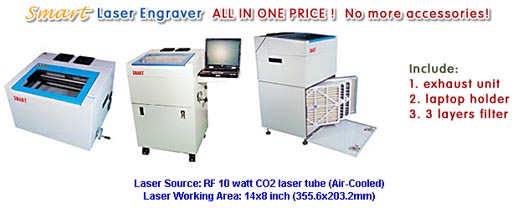

Laser Engraver uses flying optic beam delivery technology which moves the laser beam back & forth and etches the image line by line. The image files can be transformed from scanner or digital photo, and then edit in design software like "Corel Draw"'. Files are etched in a way like an ink jet printer to present the image on the materials. You can use on many incredible materials such as wood, acrylic, marble, … to make many unique applications !

It includes many new features and a totally new, functional, and very attractive layout.

Laser Engraver is functional design ,easy control, high efficiency and quality, low noises, safety and we have the filter module to prevent air pollution.

Suitable for rubber, acrylic, wood ad many non-metal materials, it can fast engraving mark card, is the advertisement and art design industries’ best choice!

We provide best before sell and after sell services for you.


      Advantages and benefits:

  • Easy use, function design, save space
    and machine can be carried around !
  • 3 layers multiple filter design !
  • No air pollution problem !
  • Low budget with huge profit !
  ------------------------------------------------------------------------------



Laser System presents:

- Easy use, functional design , save space and machine can be carried around!
- The hermetic laser box design , easy for you to watch the engraving while processing!
- 3 layers multiple filter design to prevent pollution problem effectively and suitable for inside house work!
- Easy-swap module design to assure maintenance promptly!
- Easy control and clean !
- Just buy this to make excellent work, no accessories needed !
- Low Budget with best performance !
- Personal user manual , step by step lead you to this new system!
- Laser System under EU Compliance declaration!



Laser Source RF 10 watt Sealed CO2 Laser Tube (Air-Cooled) RF 25 watt Sealed CO2 Laser Tube (Air-Cooled)
Power Requirement 110/220VAC 10A, 1 phase
Speed setting 0.1-100%
Maximum Engraving Speed 24inch/sec (600mm/sec)
Working Area 14x8 inch (355.6x203.2mm)
Maximum working size 16x10 inch (406.4x254mm)
Motorized Z-axis adjustment 30 inch (76.2mm) Manually
Maximum Cutting Speed 5.9 inch/sec (150mm/sec)
Resolution 800 DPI with 6 section
X/Y Axis Motor Stepping Motor
Computer Interface Parallel Port
Focus Lens 1.5" (Standard)
Optical design flying optical design
Software Compatible with most Windows Integrated program for graphics and character generation, such as CorelDraw
Windows Driver Windows XP, 2000, NT
Display Panel LED display bottom
Operating Modes Optimized landscape modes with raster engraving or combined vector cutting and raster engraving
Dimension(W x D x H) Whole Module-590x520x1040mm
-Laser System Module (top) – 590x520x450 mm
-Filter & Exhaust Module (bottom) – 590x520x450 mm
Whole Module-940x520x1040mm
-Laser System Module ?(top) – 940x520x450 mm
- Filter & Exhaust Module (bottom) – 590x520x450 mm
Packing Size & Weight
Laser System Module (top)
Filter & Exhaust Module (bottom)
64x57x43.5cm 60kg 97x57x43.5cm 70kg
64x56.5x50cm 50kg 64x56.5x50cm 60kg
Filter & Exhaust module(Option) Include 3 layers filter(pre-filter, Carbon-filter(paper frame) and HEPA Filter) & Exhaust unit



Antique
Award & Plaques
Anodized business card case
Buttons
Baggage Tags
Badges
Clocks
Clip holder
Custom Trophies
Certificates
Card holder
Dedication signs
Desk Accessories
Gifts (Pens, Pencils, Lighters, and Key chains)

Imitation Crafts
Industrial Nameplates & Panel
Indoor Signs
Name Card
Memorial signs
Kitchen Cabinets
Paper Engraving
Wood Plate
Stamp
Signage
Sporting items
Tile




Anodized Aluminum Anodized metal Acrylic
Bamboo Cardboard Ceramics
Cork Fabric Fiberglass
Leather Marble Wood
Plastic Paper Stone
Tile Veneer Vinyl
Wood And more non-metal material for you to use!
